Natural White Polytetrafluoroethylene PTFE

Natural White Polytetrafluoroethylene PTFE

Product number:kaxite-s002

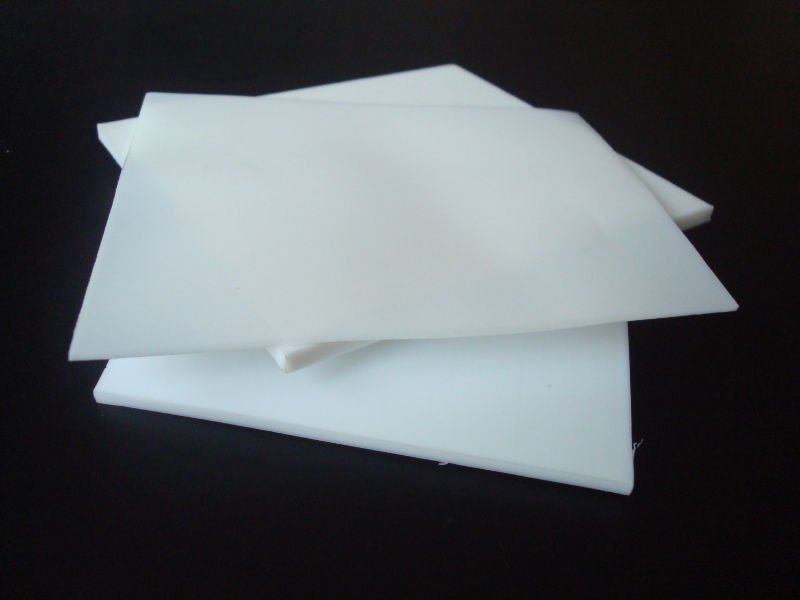

Quick Overview: Molded PTFE Teflon sheet is manufactured by molding process with PTFE granular resin and sintering. It has a wide range of practicable temperature from -180C~+260C and a wax-like surface to which anything hardly sticks. Molded Teflon sheet has the lowest coefficient of friction of all known solid materials. Molded Teflon Blocks has the best electrical properties of all plastic.It is very suitable for seals,linings, diaphragm,scraper guide and bearing pad for bridge.

Send Inquiry

PDF DownLoad

Product Description

Detailed Product Description


Natural White Polytetrafluoroethylene PTFE / Glass Filled PTFE



Quick Detail:


seal liner and lubricant material in kinds of medium, especially corrosive situation;

dielectric material in kinds of frequency;

Virgin and recycled materials available

Made of teflon molding power

Temperature : -180--260°c

Stretch strength : >15Mpa

Break elongation rate :200%



Description:


Molded PTFE Teflon sheet is manufactured by molding process with PTFE granular resin and sintering.

It has a wide range of practicable temperature from -180C~+260C and a wax-like surface to which

anything hardly sticks. Molded Teflon sheet has the lowest coefficient of friction of all known solid materials.

Molded Teflon Blocks has the best electrical properties of all plastic.It is very suitable for seals,linings,

diaphragm,scraper guide and bearing pad for bridge.



Applications:


1. Seals and gaskets

2. Valve and fitting components

3. Pump parts

4. Manifolds

5. Semiconductor equipment

6. Scientific equipment

7. Medical equipment

8. Chemical resistant tubing

9. Capacitor dielectric

10. wire isolation

11. electrical instrument isolation



Specifications:


Project Name

Unit

Result

Apparent Density

g/cm3

2.1 ~ 2.3

Tensile Strength

Mpa

≥ 14.0

Ultimate Elongation

%

≥ 150

Thick( mm )

1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 12, 14, 15, 16,

18, 19, 20, 22, 24, 25, 26, 28, 30, 35, 40, 50

Width ( mm )

100mm, 300mm, 1000mm, 1220mm

length ( mm )

100mm, 300mm, 1000mm, 1220mm, 2000mm


STOCK DIMENSION:


1220mm x 1220mm

1000mm x 1000mm

Thickness ( mm )

Weight

Thickness ( mm )

Weight

1.0mm

3.42kg

1.0mm

2.30kg

2.0mm

6.85kg

2.0mm

4.60kg

2.5mm

8.56kg

2.5mm

5.75kg

3.0mm

10.27kg

3.0mm

6.90kg

4.0mm

13.69kg

4.0mm

9.20kg



Remarks:


Molded PTFE Teflon sheets are available in other sizes and thickness according to customer's specific

requirements.



Competitive Advantage:


1.Excellent Chemical property

2.Virgin and recycled materials available

3.Any sizes available

4.Fast Usually
