Non-Toxic PTFE Teflon Sheet Soft Formable Weathering Resistance

Non-Toxic PTFE Teflon Sheet Soft Formable Weathering Resistance

Product number:kaxite-s003

Quick Overview: PTFE resin is first molded into work-blank and then skived. PTFE sheets are known as flexible or thin sheets.It recognized as the first fluorocarbon material in the world and referred to as PTFE or Teflon, it is the most chemically resistant plastic known. It has a working temperature range of minus -180°c to 260°c It also has a very low coefficient of friction excellent thermal and electrical insulation properties and is commonly used in food contact applications. It provides good thermal stability and has good electrical properties, but is not suitable for wear application and is difficult to bond.

Send Inquiry

PDF DownLoad

Product Description

Detailed Product Description
Applications: Valve|Pump Feature: Non-Toxic|Soft|Formable
Thickness: 100mm|300mm|1000mm|1220mm|2000mm Width: 100mm|300mm|1000mm|1220mm

Non-Toxic PTFE Teflon Sheet Soft Formable Weathering Resistance



Quick Detail:


1. High dielectric properties

2. Non-toxic

3. Superb electrical insulating properties

4. A wide working temperature range from 260°C down to liquid nitrogen temperatures (-260°C)

5. Lowest coefficient of friction of any known material.

6. Tremendous chemical resistance

7. Limitations: low compressive & tensile strength.

8. Outstanding chemical resistance

9. Extremely low friction

10. Soft and formable

11. Good bearing and wear properties (bearing grade)

12. Good weathering resistance

13. Performs well at elevated temperatures

14. Virgin and recycled materials available

15. Any sizes available



Description:

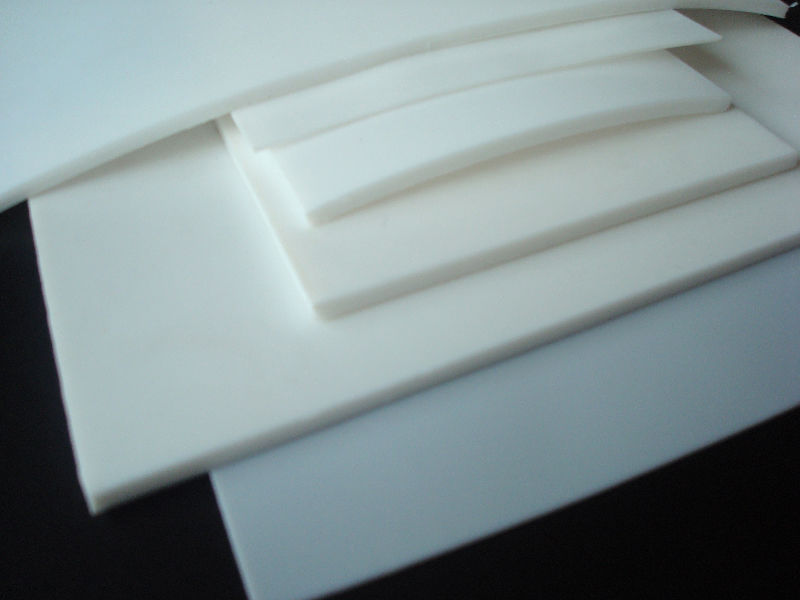

PTFE resin is first molded into work-blank and then skived.

PTFE  sheets are known as flexible or thin sheets.It recognized as the first fluorocarbon

material in the world and referred to as PTFE or Teflon, it is the most chemically resistant plastic known.

It has a working temperature range of minus -180°c to 260°c It also has a very low coefficient of friction

excellent thermal and electrical insulation properties and is commonly used in food contact applications.

It provides good thermal stability and has good electrical properties, but is not suitable for wear

application and is difficult to bond.



Applications:


1. Seals and gaskets

2. Valve and fitting components

3. Pump parts

4. Manifolds

5. Semiconductor equipment

6. Scientific equipment

7. Medical equipment

8. Chemical resistant tubing

9. Capacitor dielectric

10. wire isolation

11. electrical instrument isolation



Specifications:


Project Name

Unit

Result

Apparent Density

g/cm3

2.1 ~ 2.3

Tensile Strength

Mpa

≥ 14.0

Ultimate Elongation

%

≥ 150

Thick( mm )

1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 12, 14, 15, 16,

18, 19, 20, 22, 24, 25, 26, 28, 30, 35, 40, 50

Width ( mm )

100mm, 300mm, 1000mm, 1220mm

length ( mm )

100mm, 300mm, 1000mm, 1220mm, 2000mm


STOCK DIMENSION:


1220mm x 1220mm

1000mm x 1000mm

Thickness ( mm )

Weight

Thickness ( mm )

Weight

1.0mm

3.42kg

1.0mm

2.30kg

2.0mm

6.85kg

2.0mm

4.60kg

2.5mm

8.56kg

2.5mm

5.75kg

3.0mm

10.27kg

3.0mm

6.90kg

4.0mm

13.69kg

4.0mm

9.20kg



Remarks:


PTFE  sheets are available in other sizes and thickness according to customer's specific

requirements.



Competitive Advantage:


1. Excellent Chemical property

2. Virgin and recycled materials available

3. Any sizes available

4. Fast Usually
