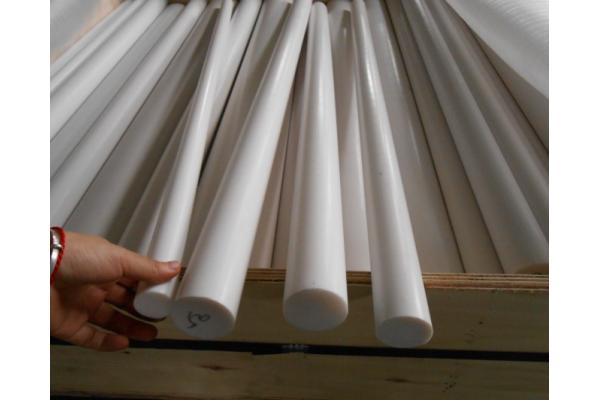

White Virgin Molded PTFE Teflon Rod Self Lubricating Natural Durability

White Virgin Molded PTFE Teflon Rod Self Lubricating Natural Durability

Product number:kaxite-r012

Quick Overview: Molded PTFE Teflon rod is manufactured by technics of extruding and molding method in the diameter from 10 to 500mm with PTFE granular resin. As PTFE has a very low co-efficient of friction, so the surface of molded teflon PTFE rod has similar friction levels to ice. Molded teflon PTFE rod can work at -180°C ~+260°C and is the best electrical insulator of all known plastics. Molded Teflon rod and cylinders for machining in a wide range of sizes. The most common sizes are listed in the table below, but many other combinations of OD and ID are available. Molded rods are preferred for machining because compression molding yields greater material homogeneity for the finished part.

Send Inquiry

PDF DownLoad

Product Description

Detailed Product Description

White Virgin Molded PTFE Teflon Rod Self Lubricating Natural Durability





Quick Detail:



1.Length :100mm--3000mm or as your requirements

2.Diameters : 10mm-500mm

3.High chemical resistance

4.High temperature resistance

5.Long durability

6.Self lubricating

7. Non-contaminating

8.With high quality and competitive price

9.Any sizes available





Description:



Molded PTFE Teflon rod is manufactured by technics of extruding and molding method in the diameter

from 10 to 500mm with PTFE granular resin. As PTFE has a very low co-efficient of friction,

so the surface of molded teflon PTFE rod has similar friction levels to ice. Molded teflon PTFE rod can

work at -180°C ~+260°C and is the best electrical insulator of all known plastics.

Molded Teflon rod and cylinders for machining in a wide range of sizes.  The most common sizes are listed

in the table below, but many other combinations of OD and ID are available.  Molded rods are preferred for

machining because compression molding yields greater material homogeneity for the finished part.







Applications:



  1. all kinds of chemical,

  2. electrical Insulation

  3. mechanical components

  4. seal,Antisticking materials.


Note:All ptfe rods can be etched for bonding, and can be mounted on a plywood disk for less waste in

machining. Also can be made with filled (reinforced) PTFE to enhance the performance parameters of

PTFE. Materials available for reinforcement are Glass Fiber, Graphite, Bronze we can do.







Specifications:



Property

 Unit

Result

Apparent Density

g/cm3

2.10-2.30

Tensile Strength ≥

MPa

≥14

Crack Elongation ≥

%

≥150

Working Temperature

°C

-180°C ~ + 260°C



Diameter(mm)

Length(mm)

Norminal

Tolerance

Norminal

Tolerance

20,25,30

+1.130

100,1000,3000

+3.60

35,40,45,50

+1.600

100,1000,3000

+3.60

55,60,65,70,75,80,85,90,100

+2.000

100,1000,3000

+2.50

110,120,130,140,150

+2.500

100,1000,3000

+2.50

180,200,250,270,300,500

+3.000

300,1000,3000

+2.00







Remarks:



Molded PTFE Teflon rod are available in other sizes and thickness according to customer's specific

requirements.





Competitive Advantage:



1.Excellent Chemical property
2.Virgin and recycled materials available
3.Any sizes available

4.Fast Usually
