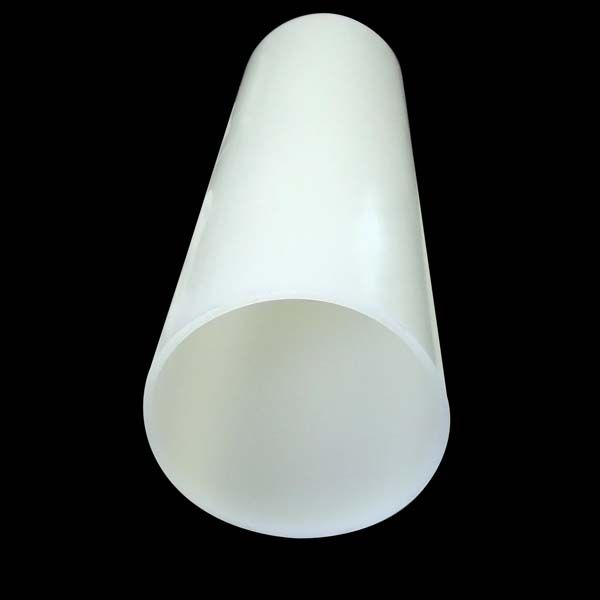

Acid-Resistant Light Weight PVDF Tube / PVDF Sheet For Pharmaceutical Industry

Acid-Resistant Light Weight PVDF Tube / PVDF Sheet For Pharmaceutical Industry

Product number:kaxite-vd03

Quick Overview: PVDF tube (polyvinylidene fluoride)/Kynar tube, is a versatile fluoropolymer which is both strong and tough as reflected by its tensile properties and impact strengths. PVDF has excellent resistances to creep and fatigue. In thin sections, such as films, filament, and tubing, PVDF components are flexible and transparent. PVDF resin is produced by the Pennewalt and Soltex companies and sold under their respective tradenames of Kynar and Solef.

Send Inquiry

PDF DownLoad

Product Description

Detailed Product Description
Applications: Laboratory Feature: Light Weight
Length: 100 - 150, ≥4000MM, 200 Product Name: PVDF Sheet
Type: PVDF Tube Dia: 5-20,25-100,3-150mm



Acid-Resistant Light Weight PVDF Tube / PVDF Sheet For Pharmaceutical Industry



Quick Detail:



1). Extremely strong agglutination, macromolecule film
2). Excellent rigidity and impact resistance
3). Acid-resistant and alkali-resistant
4). Light weight, easy to installation
5). Easy to clean and maintenance







Description:



PVDF tube (polyvinylidene fluoride)/Kynar tube, is a versatile fluoropolymer which is both strong and

tough as reflected by its tensile properties and impact strengths. PVDF has excellent resistances to

creep and fatigue. In thin sections, such as films, filament, and tubing, PVDF components are flexible

and transparent. PVDF resin is produced by the Pennewalt and Soltex companies and sold under their

respective tradenames of Kynar and Solef.


Where load bearing is important, PVDF fluoropolymers are rigid and resistant to creep under mechanical

stress and load. Because PVDF is stable to sunlight, and other sources of ultraviolet radiation, it is widely

used as base resins for long-lasting exterior coatings. An additional advantage over other fluoroplastics is

that PVDF can be welded into tanks for acid and corrosive chemical processing in elevated temperature

environments.





Applications:



PVDF tube can Widely used in

1.Semiconductor industry

2. Pulp and paper industry

3.Pharmaceutical industry

4. Nuclear waste processing

5. Chemical processing

6. Food processing

7. Laboratory





Specifications:



Item

Dia

Length

Application

Molded tube

5-20

200

In-process antisepsis,steel ,insulating component



25-100

100-150



Extrusion tube

3-150

≥4000

Pipeline for corrosive liquid and gas, protecting tube for Electric wire

PVDF tube conforms to the respective standards .





Remarks:



We can also produce PVDF tube in other sizes according to customer's specific requirements.





Competitive Advantage:



1.Excellent Chemical property
2.Virgin and recycled materials available
3.Any sizes available

4.Fast Usually
