Bonded / Welded Plastic PVDF Plate High Toughness Good Wear Resistance

Bonded / Welded Plastic PVDF Plate High Toughness Good Wear Resistance

Product number:kaxite-vd13

Quick Overview: · Easily machined · Easily bonded and welded · Resistant to most alkalis and weak acids · High heat distortion temperature · Very good electrical insulator · Excellent formability · Relatively low water absorption

Send Inquiry

PDF DownLoad

Product Description

Detailed Product Description

Bonded / Welded Plastic PVDF Plate High Toughness Good Wear Resistance





Quick Detail:



·         Easily machined

·         Easily bonded and welded

·         Resistant to most alkalis and weak acids

·         High heat distortion temperature

·         Very good electrical insulator

·         Excellent formability

·         Relatively low water absorption





Description:

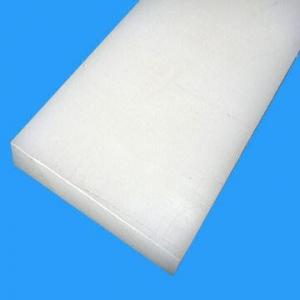

PVDF sheet (polyvinylidene fluoride), is a versatile fluoropolymer which is both strong and tough as

reflected by its tensile properties and impact strengths. PVDF has excellent resistances to creep and

fatigue. In thin sections, such as films, filament, and tubing, PVDF components are flexible and transparent.

PVDF resin is produced by the Pennewalt and Soltex companies and sold under their respective

tradenames of Kynar and Solef.
Where load bearing is important, PVDF fluoropolymers are rigid and resistant to creep under mechanical

stress and load. Because PVDF is stable to sunlight, and other sources of ultraviolet radiation, it is widely

used as base resins for long-lasting exterior coatings. An additional advantage over other fluoroplastics is

that PVDF can be welded into tanks for acid and corrosive chemical processing in elevated temperature

environments.





Applications:



PVDF sheet can Widely used in



1.Chemical Tank and Equipment Construction

2.Semiconductor Industry

3.Power and Electrical Engineering

4.Solar photovoltaic

5.Valves&Pumpes

6.Laboratory Engineering

7.Food Industry

8.Environmental technology

9.High purity water





Specifications:

                                                                     Unit: mm

Item

Thickness

Width

Length

Molded sheet

6-50

1000*2000

1220*2440

1500*3000

Extruded sheet

1-15

1000-1500

≤10000

PVDF Lining Sheet & glass fiber

2-6

1000-1200

≤10000





Remarks:



We can also produce PVDFsheet in other sizes and thickness according to customer's specific

requirements.





Competitive Advantage:



Excellent Chemical property


2.Virgin and recycled materials available


3.Any sizes available


4.Fast Usually
