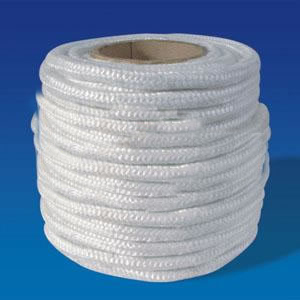

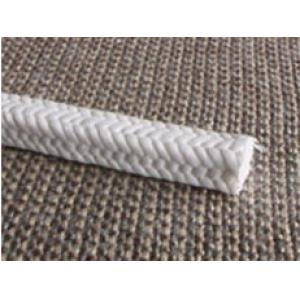

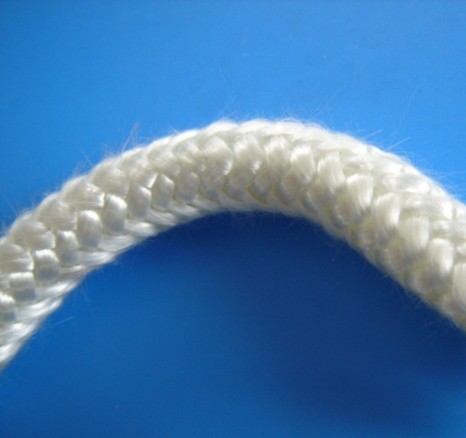

Braided Packing, also known as braided gland packing, is a fundamental sealing component used to control leakage around rotating or reciprocating shafts in pumps, valves, mixers, and other industrial equipment. Unlike single-seal solutions, braided packing is engineered from multiple strands of sealing material—such as PTFE, aramid fibers, carbon, or graphite—woven together into a pliable, square or round cross-section. This construction creates a dense, adaptable seal that can be tightened via a gland follower to maintain optimal contact with the shaft, effectively containing process fluids under various pressures and temperatures. At Kaxite Sealing, we specialize in manufacturing high-performance braided packing solutions designed for durability, minimal shaft wear, and long-term reliability in demanding applications. The correct selection and installation of braided packing are paramount for operational efficiency, reducing downtime, and preventing costly fluid loss or environmental contamination.
Selecting the appropriate braided packing requires a detailed understanding of its specifications. Kaxite Sealing's products are characterized by precise engineering, with each parameter tailored to specific service conditions. Below is a breakdown of our core product parameters.
The sealing material is the most critical factor determining performance. Our range includes:
The following table provides a comparative overview of standard Kaxite Sealing braided packing product lines.
| Product Series | Core Material | Temperature Range | Pressure Range | pH Range | Primary Applications |
|---|---|---|---|---|---|
| KX-PTFE Elite | Virgin PTFE Filament | -100°F to 500°F (-73°C to 260°C) | Up to 1500 psi | 0-14 | Chemical pumps, food processing, water treatment |
| KX-Aramid Pro | Lubricated Aramid Fiber | -40°F to 500°F (-40°C to 260°C) | Up to 2500 psi | 2-12 | High-pressure centrifugal pumps, mixers, valve stems |
| KX-Carbon Seal | Reinforced Carbon Fiber | -100°F to 1200°F (-73°C to 649°C) (Inert) | Up to 2000 psi | 0-14 (Oxidizing agents excluded) | Boiler feed pumps, autoclaves, high-temperature agitators |
| KX-Graphite HD | Pure Graphite Filament | -400°F to 1200°F (-240°C to 649°C) (Oxidizing: up to 850°F) | Up to 2500 psi | 0-14 (except strong oxidizers) | Steam valves, heat exchangers, refinery services |
| KX-Composite Plus | PTFE Core with Graphite Inlay | -100°F to 550°F (-73°C to 288°C) | Up to 1800 psi | 0-14 | General-purpose industrial pumps, compressors, rotating equipment |
Q: How do I select the right braided packing material for my application?
A: Material selection depends on four primary factors: the fluid media (chemical compatibility), operating temperature, pressure (including shaft speed for rotating equipment), and the equipment type (pump, valve, etc.). Always consult the manufacturer's chemical resistance guide and temperature/pressure ratings. For complex applications, contacting a specialist like Kaxite Sealing for a technical review is recommended to ensure optimal performance and lifespan.
Q: What is the proper installation procedure for braided packing?
A: Correct installation is crucial. First, clean the stuffing box thoroughly. Cut packing rings on a clean surface using a mandrel the exact size of the shaft; cuts should be square (butt-cut). Stagger the joints of each ring by 90 degrees when installing rings sequentially. Use a tamping tool to seat each ring firmly but without excessive force. After all rings are installed, tighten the gland follower finger-tight only. Start the equipment and gradually tighten the gland in small increments during the initial run-in period (often 15-30 minutes) until a slight weep of leakage is achieved for lubrication and cooling.
Q: What does "break-in period" mean for braided packing, and why is it important?
A: The break-in period is the initial operational phase where the packing adjusts to the shaft and seals properly. During this time, internal lubricants distribute, fibers seat into the imperfections of the shaft, and the packing conforms to the stuffing box. Proper, gradual tightening during this period is vital. Over-tightening immediately can cause excessive friction, leading to overheating, rapid packing wear, and scoring of the shaft. A controlled break-in ensures lower long-term leakage and maximum packing life.
Q: Can braided packing be used for both rotating and reciprocating shafts?
A: Yes, braided packing is versatile. However, the specific construction and material may vary. For high-speed rotating shafts (like in centrifugal pumps), a softer, self-lubricating packing designed to minimize heat generation is often used. For slower reciprocating motion (like in valve stems), a denser, more resilient packing that can handle back-and-forth movement without extruding is preferred. Kaxite Sealing offers product lines specifically engineered for each type of motion.
Q: How do Kaxite Sealing braided packing products reduce shaft wear?
A: Our packings are engineered with shaft protection in mind. We use high-lubricity materials like PTFE and graphite, and our precise braiding techniques ensure a uniform, smooth packing surface that minimizes abrasive contact. Products like our KX-Carbon Seal series have inherent self-lubricating properties. Furthermore, our technical guidelines emphasize correct installation and adjustment to prevent the excessive gland pressure that is a primary cause of shaft scoring.
Q: What are the signs that my braided packing needs to be replaced?
A: Key indicators include: a persistent, uncontrollable increase in leakage despite proper gland adjustment; visible physical degradation of the packing (fraying, hardening, or powdering); excessive heat generation at the stuffing box; and a significant increase in power consumption due to higher friction. Regular maintenance schedules based on equipment runtime are the best practice to avoid unexpected failure.
Q: Does Kaxite Sealing offer custom braided packing solutions?
A: Absolutely. While we stock a comprehensive range of standard sizes and materials, we specialize in developing custom braided packing solutions. This can include unique cross-sections, specialized material blends for aggressive chemistries, custom lubricant impregnation, and specific braid patterns to meet unique pressure, temperature, or regulatory requirements. Our engineering team works directly with clients to design and test prototypes.
