FEP, or Fluorinated Ethylene Propylene, is a high-performance fluoropolymer renowned for its exceptional chemical resistance, thermal stability, and excellent electrical insulating properties. As a leading innovator in advanced polymer solutions, Kaxite Sealing specializes in engineering premium-grade FEP materials and components for the most demanding industrial, chemical processing, semiconductor, and medical applications.
At its core, FEP is a fully fluorinated copolymer, sharing many of the outstanding characteristics of PTFE (Teflon®) but with the added advantage of being melt-processable using conventional techniques like extrusion and injection molding. This processability allows for the creation of complex shapes, thin films, tight-tolerance tubing, and intricate linings that are often challenging with PTFE. Kaxite Sealing leverages this capability to produce precision seals, gaskets, films, and custom profiles that deliver reliability where other materials fail.
### Key Material Properties and Advantages
The superiority of
FEP lies in its balanced portfolio of properties:
* **Unmatched Chemical Resistance:** FEP is virtually inert, resisting attack by virtually all industrial chemicals, strong acids, bases, solvents, and oxidizing agents. This makes it ideal for seals and components in aggressive chemical environments.
* **Wide Service Temperature Range:** Kaxite Sealing's FEP products maintain their structural integrity and performance from cryogenic temperatures as low as -200°C (-328°F) up to a continuous service temperature of 204°C (400°F).
* **Excellent Dielectric Properties:** It possesses a very low dielectric constant and dissipation factor, which remain stable across a wide frequency and temperature spectrum, making it perfect for high-frequency and high-temperature wire and cable insulation.
* **Superior Non-Stick Characteristics:** Its non-wetting, low-friction surface prevents adhesion of most materials, facilitating easy cleaning and preventing material buildup. This is crucial in food processing, pharmaceutical, and packaging applications.
* **Optical Clarity:** Certain grades of FEP offer remarkable transparency, allowing for visual inspection in fluid handling systems and use in specialized optical applications.
* **Inherent Flame Resistance:** FEP is naturally flame-retardant and meets various industry standards for low smoke and flame spread.
* **Weatherability and UV Resistance:** It offers excellent resistance to weathering and ultraviolet radiation, ensuring long-term performance in outdoor applications without significant degradation.
* **High Purity and Low Leachability:** Kaxite Sealing produces ultra-pure FEP grades suitable for semiconductor manufacturing, pharmaceutical processing, and sensitive analytical applications where contamination must be avoided.
### In-Depth Product Specifications: Kaxite Sealing FEP Grades
To ensure you select the optimal material for your application, Kaxite Sealing offers a range of FEP formulations. Below are detailed specifications for our standard and high-performance grades.
#### Standard FEP Resin Properties
| Property | Test Standard | Unit | Kaxite FEP-100 (General Purpose) | Kaxite FEP-200 (High Flow) | Kaxite FEP-300 (High Clarity) |
| :--- | :--- | :--- | :--- | :--- | :--- |
| **Melt Flow Rate** | ASTM D1238 | g/10 min | 5 - 8 | 25 - 35 | 6 - 10 |
| **Melting Point** | ASTM D3418 | °C | 260 - 265 | 260 - 265 | 260 - 265 |
| **Density** | ASTM D792 | g/cm³ | 2.12 - 2.17 | 2.12 - 2.17 | 2.12 - 2.17 |
| **Tensile Strength at Yield** | ASTM D638 | MPa (psi) | 20 (2900) | 18 (2600) | 21 (3050) |
| **Elongation at Break** | ASTM D638 | % | 300 | 280 | 320 |
| **Flexural Modulus** | ASTM D790 | MPa | 655 (95,000) | 630 (91,000) | 670 (97,000) |
| **Dielectric Strength** | ASTM D149 | kV/mm | 80 | 78 | 82 |
| **Dielectric Constant @ 1MHz** | ASTM D150 | - | 2.1 | 2.1 | 2.1 |
| **Dissipation Factor @ 1MHz** | ASTM D150 | - | < 0.0002 | < 0.0002 | < 0.0002 |
| **Coefficient of Friction** | ASTM D1894 | - | 0.17 | 0.18 | 0.16 |
| **Continuous Service Temp.** | - | °C | 204 | 204 | 204 |
#### FEP Product Forms & Typical Applications from Kaxite Sealing
Kaxite Sealing manufactures and supplies FEP in various forms to meet diverse engineering needs:

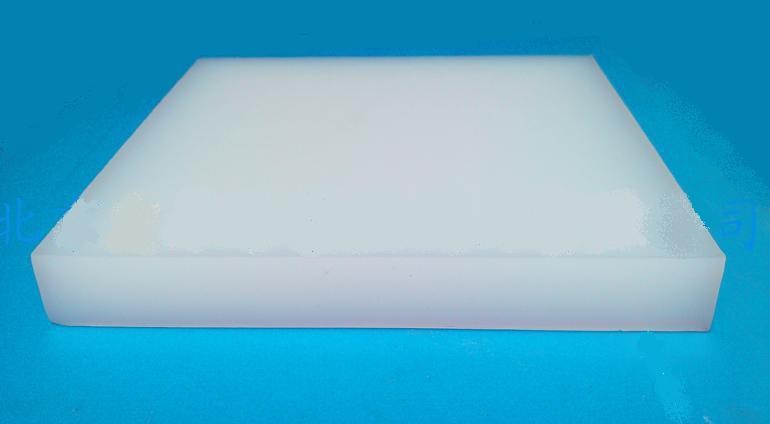

* **FEP Sheets & Films:**
* **Thickness Range:** 0.0127 mm (0.0005") to 6.35 mm (0.250").
* **Applications:** Liners for chemical tanks, release sheets for composites, windows for corrosive environments, membrane supports, and sterile packaging.

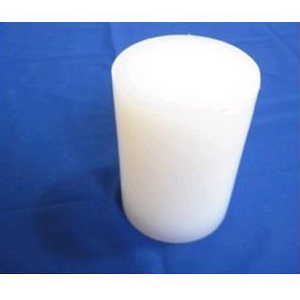

* **FEP Rods & Bars:**
* **Diameter Range:** 3 mm (1/8") to 150 mm (6").
* **Applications:** Machined into custom seals, bushings, spacers, insulators, and laboratory equipment components.

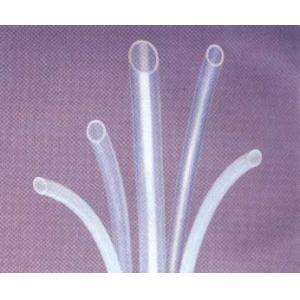

* **FEP Tubing & Hoses:**
* **Size Range:** Inner diameter from 0.5 mm to 100 mm.
* **Applications:** High-purity fluid transfer, analytical instrument tubing, chemical feed lines, and heat shrink sleeves.
* **FEP Coated Products:**
* **Description:** Fabrics, glass, or metals coated with a layer of FEP for added chemical and weathering protection.
* **Applications:** Architectural fabrics, chemical-resistant work surfaces, and release layers.
* **Custom Molded & Extruded Parts:**
* **Description:** Kaxite Sealing provides custom fabrication services for complex seals, gaskets, bellows, and profiles.
* **Applications:** Semiconductor wafer carriers, pump diaphragms, valve components, and medical device parts.
### FEP Frequently Asked Questions (FAQ)
**What is the primary difference between FEP and PTFE?**
While both are fluoropolymers with excellent chemical resistance, the key difference is processability. PTFE cannot be melt-processed and typically requires sintering or compression molding. FEP can be processed using standard melt techniques like extrusion and injection molding, allowing for more complex, economical, and high-volume production of parts.
**Can FEP be used for high-temperature wire insulation?**
Absolutely. FEP is a premier material for high-performance wire and cable insulation, especially in aerospace, telecommunications, and high-temperature environments. Its combination of excellent dielectric properties, thermal stability up to 204°C, and resistance to flame and chemicals makes it a top choice. Kaxite Sealing supplies FEP resins specifically compounded for wire coating applications.
**How does FEP perform in terms of permeation?**
FEP has very low permeability to gases and liquids compared to many other plastics, though it is generally slightly more permeable than PTFE. For applications requiring an exceptional barrier, Kaxite Sealing can provide guidance on material selection or recommend multilayer solutions.
**Is FEP suitable for food contact and medical applications?**
Yes, when produced to the appropriate purity standards. Kaxite Sealing offers USP Class VI and FDA-compliant grades of FEP that are suitable for repeated food contact and medical device applications. These grades meet stringent requirements for biocompatibility and extractables.
**Can FEP be bonded or welded to itself or other materials?**
Bonding FEP is challenging due to its non-stick, chemically inert surface. Specialized surface treatments (like sodium etching or plasma treatment) are required to create a bondable surface. Thermal welding (heat sealing) of FEP films is a common and effective joining method. Kaxite Sealing's technical team can advise on the best joining method for your specific assembly.
**What are the limitations of FEP?**
While outstanding in many areas, FEP has limitations to consider. Its mechanical strength and creep resistance at elevated temperatures are lower than some other engineering plastics. It is also susceptible to stress cracking when exposed to certain chemicals under sustained tensile load. Consulting with Kaxite Sealing's engineers during the design phase helps mitigate these risks.
**How does FEP compare to PFA?**
FEP and PFA (Perfluoroalkoxy) are very similar. PFA generally has a slightly higher continuous use temperature (up to 260°C) and better resistance to stress cracking, but it is also more expensive. FEP often provides the best balance of performance and cost for applications not exceeding 204°C.
**What are the best practices for machining FEP?**
FEP can be machined using standard metalworking tools, but it requires specific techniques. Use sharp, high-speed steel or carbide tools. Employ high cutting speeds with slow feed rates to achieve a good finish. Adequate cooling (usually with air or a mist) is recommended to prevent material softening. Kaxite Sealing provides detailed machining guidelines with material orders.
**Does Kaxite Sealing offer custom color compounding for FEP?**
Yes. While natural FEP is transparent to opaque white, Kaxite Sealing can compound a wide range of stable, heat-resistant pigments to produce FEP in custom colors for coding, safety, or aesthetic purposes.
**How should FEP components be stored and handled?**
Store FEP products in a cool, dry, dark place away from direct sunlight and heat sources. While chemically resistant, the surface can attract dust; clean with isopropyl alcohol if necessary. Handle with clean gloves to prevent contamination, especially for high-purity applications.
