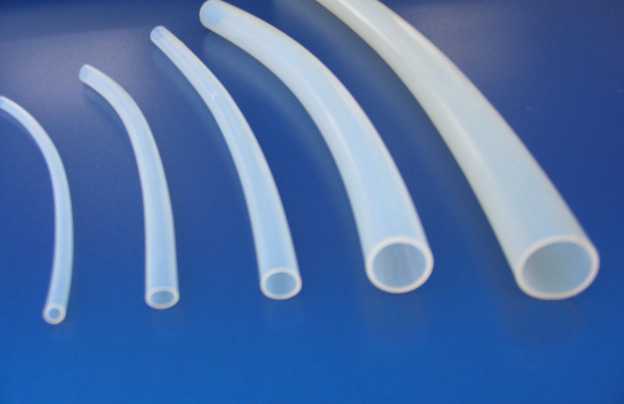

PTFE Teflon Tube stands as the benchmark for performance in fluid and gas transfer systems where chemical resistance, high temperatures, and purity are non-negotiable. Kaxite Sealing, a name synonymous with precision-engineered sealing and tubing solutions, manufactures PTFE tubing that meets the rigorous demands of modern industry. Our tubing, crafted from 100% virgin polytetrafluoroethylene resin, delivers unparalleled reliability for applications ranging from aggressive chemical processing to ultra-clean semiconductor manufacturing. The inherent properties of PTFE – including its near-universal chemical inertness, exceptional temperature range, and extremely low coefficient of friction – make it an indispensable material for engineers and designers. This guide delves into the comprehensive specifications, applications, and advantages of Kaxite Sealing's PTFE Teflon tubing, providing the technical detail necessary for your component selection.
**Core Properties & Advantages of Kaxite Sealing PTFE Tubing**
The superiority of PTFE tubing from Kaxite Sealing is rooted in the material's fundamental characteristics:
* **Extreme Chemical Resistance:** PTFE is virtually inert, resisting attack by virtually all industrial chemicals, solvents, and acids, including strong oxidizers like aqua regia. This makes it ideal for corrosive fluid handling.
* **Wide Temperature Range:** Our tubing maintains excellent mechanical properties from -268°C (-450°F) up to +260°C (+500°F), with short-term tolerance even higher.
* **Excellent Dielectric Strength:** PTFE is an outstanding electrical insulator with a high dielectric strength, suitable for wire insulation and high-frequency applications.
* **Very Low Coefficient of Friction:** PTFE has the lowest coefficient of friction of any solid material, minimizing pressure drop and allowing for easier insertion of wires or smaller tubes.
* **Non-Stick & High Purity:** Its non-adhesive surface prevents buildup and ensures clean fluid transfer. It is also physiologically inert, making it suitable for food, beverage, and pharmaceutical applications.
* **Flexibility & Durability:** Despite its toughness, PTFE tubing from Kaxite Sealing offers excellent flexibility, especially in thinner wall constructions, for easy routing in complex assemblies.
**Detailed Product Specifications & Data**
Kaxite Sealing offers a comprehensive range of PTFE tubing in various grades and configurations. Below are the detailed technical parameters.

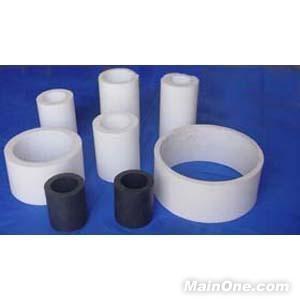

**Standard Material Grades:**
| Grade | Description | Key Characteristics | Typical Applications |
| :--- | :--- | :--- | :--- |
| **Virgin PTFE** | Manufactured from 100% pure, unmodified PTFE resin. | Highest chemical purity, excellent electrical properties, standard white color. | Chemical transfer, pharmaceutical lines, electrical insulation, food & beverage. |
| **FDA-Compliant PTFE** | Conforms to FDA CFR 21.177.1550 for food contact. | Meets stringent purity standards for indirect food contact applications. | Dairy processing, beverage dispensing, food machinery lubrication lines. |

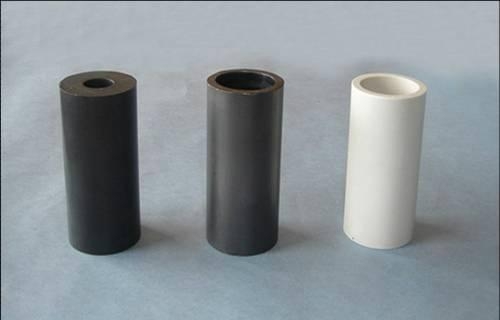

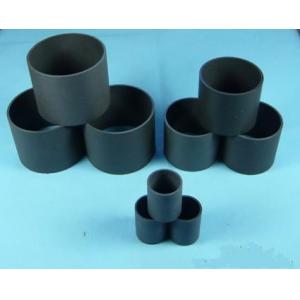

| **Conductive PTFE** | Filled with carbon or metal powders. | Provides static dissipation or electrical conductivity. | Fuel handling, solvent transfer, static-sensitive environments. |
| **Reinforced PTFE** | Filled with glass or other fibers. | Enhanced mechanical strength, reduced creep, improved wear resistance. | Hydraulic lines, pneumatic systems, mechanical bushings. |
**Standard Dimensional Specifications:**
Our tubing is available in a vast array of sizes. Standard stock includes:
* **Inner Diameter (ID):** Ranging from 0.010" (0.25 mm) to 4.0" (101.6 mm).
* **Wall Thickness:** Available in thin-wall, standard-wall, and heavy-wall schedules (e.g., 0.010", 0.030", 0.062", 0.125").
* **Tolerance:** Standard inner/outer diameter tolerance is typically ±0.003" (±0.076 mm) for smaller sizes, with proportional tolerances for larger sizes. Custom tolerances are available.
* **Length:** Supplied in continuous coils or straight lengths up to 1000 ft (305 m) depending on diameter.
* **Color:** Standard is natural white (opaque). Custom colors (black, red, blue, etc.) are available for coding purposes.
**Physical & Thermal Properties Table:**
| Property | Test Method | Typical Value | Unit |
| :--- | :--- | :--- | :--- |
| **Tensile Strength** | ASTM D638 | 3,000 - 7,000 | psi |
| **Elongation at Break** | ASTM D638 | 200 - 400 | % |
| **Dielectric Strength** | ASTM D149 | 500 - 600 | V/mil |
| **Volume Resistivity** | ASTM D257 | >10^18 | ohm-cm |
| **Coefficient of Friction** | ASTM D1894 | 0.04 - 0.10 | -- |
| **Melting Point** | -- | 327 | °C |
| **Continuous Service Temp.** | -- | -268 to +260 | °C |
| **Short-Term Service Temp.** | -- | Up to +300 | °C |
**Pressure Ratings:**
Pressure rating is highly dependent on diameter, wall thickness, temperature, and end fittings. As a general guide:
* Thin-wall tubing may handle pressures up to 150 psi.
* Standard and heavy-wall tubing can be rated for pressures exceeding 500 psi.
* **Critical Note:** Always consult Kaxite Sealing's engineering data for precise pressure/temperature ratings for your specific tube size and application. Safety factors must be applied.
**Frequently Asked Questions (FAQ) About PTFE Teflon Tube**
**Q: What is the primary difference between PTFE and Teflon tubing?**
**A:** "Teflon" is a registered trademark of Chemours (formerly DuPont) for their brand of PTFE (Polytetrafluoroethylene). Therefore, all Teflon tubing is PTFE tubing, but not all PTFE tubing can be called "Teflon." Kaxite Sealing manufactures high-quality PTFE tubing that exhibits all the superior properties associated with the PTFE family of materials.
**Q: Can Kaxite Sealing PTFE tubing be used for high-purity applications like semiconductor manufacturing?**
**A:** Absolutely. Our virgin PTFE tubing is manufactured in a controlled environment and is ideal for high-purity applications. It can be produced and packaged in cleanrooms to meet specific particle count standards. The material itself does not leach contaminants, ensuring fluid integrity in sensitive processes.
**Q: How do I connect or fit PTFE tubing? It seems very slippery.**
**A:** The non-stick property does require specific connection methods. The most common and reliable techniques are using compression fittings with ferrules (e.g., Swagelok-style), push-to-connect fittings with gripper teeth, or flaring/flangeless fittings. For permanent connections, heat bonding or specialized adhesives can be used. Our technical team can advise on the best fitting solution for your pressure and media requirements.
**Q: Is PTFE tubing flexible? Can it be bent sharply?**
**A:** PTFE tubing is flexible, but it has a memory and will resist sharp bends. The minimum bend radius is typically 4-5 times the outer diameter of the tube. Bending it too sharply can kink or damage the inner bore. For applications requiring tight bends, pre-formed coils or bends can be manufactured by Kaxite Sealing.
**Q: What chemicals are NOT compatible with PTFE tubing?**
**A:** PTFE is resistant to almost all chemicals. The only known exceptions are extremely reactive substances like molten alkali metals (e.g., sodium, potassium) and certain fluorine compounds under specific high-temperature, high-pressure conditions. For 99.9% of industrial chemicals, Kaxite Sealing PTFE tubing is fully compatible.
**Q: How does temperature affect the performance of PTFE tubing?**
**A:** PTFE retains its flexibility and mechanical strength across its vast temperature range. However, its pressure rating decreases as temperature increases. It is also subject to thermal expansion; designers must account for length changes in long, fixed runs. At temperatures approaching 260°C, slight deformation under sustained load (creep) can occur, which is why reinforced grades are recommended for high-temp mechanical applications.
**Q: Can this tubing be used for outdoor or UV-exposed applications?**
**A:** Standard virgin PTFE can degrade slightly under prolonged, direct exposure to ultraviolet light from sunlight. For outdoor use, we recommend specifying a UV-stabilized grade of PTFE or ensuring the tubing is shielded within a conduit or protective sleeve. Black PTFE tubing generally has better UV resistance.
**Q: Does Kaxite Sealing offer custom fabrication services for PTFE tubing?**

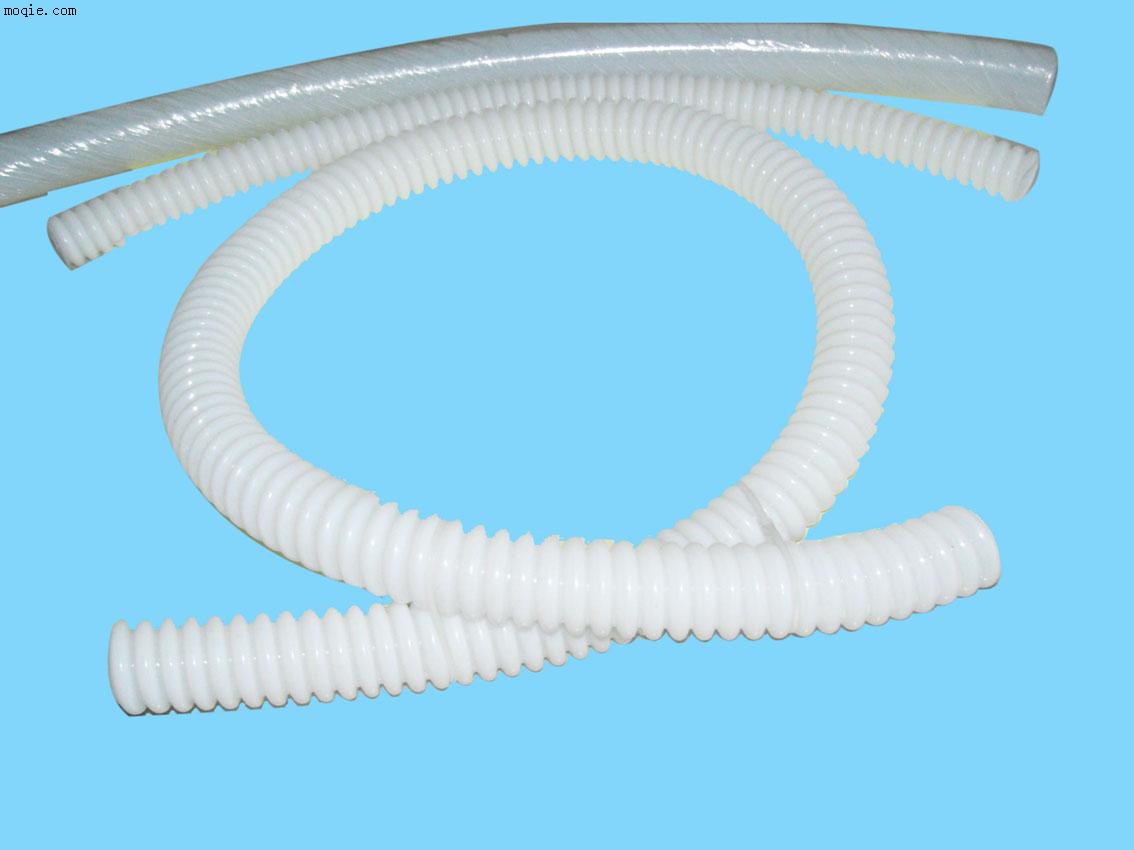

**A:** Yes. Beyond standard straight lengths and coils, we provide extensive custom services including cutting to specific lengths, flaring, flanging, bending, printing/marking, assembly with fittings, and fabrication of complex hose assemblies with braided over-wraps for higher pressure applications.
**Q: What industries most commonly use your PTFE Teflon tubing?**
**A:** Our tubing is critical in numerous sectors: Chemical Processing (for transferring acids, solvents), Semiconductor (for ultra-pure water and chemicals), Automotive & Aerospace (for fuel, air, hydraulic lines), Pharmaceutical & Biotech (for process fluids), Food & Beverage (for ingredient and cleaning lines), and Industrial Machinery (for pneumatic controls and lubrication systems).
