Extruded PTFE Teflon Tube

Extruded PTFE Teflon Tube

Product number:kaxite-s009

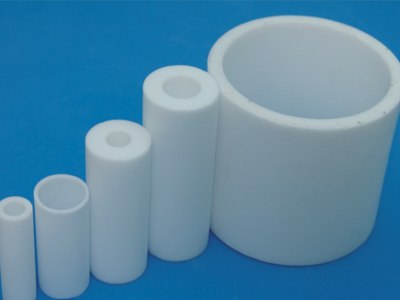

Quick Overview: Extruded PTFE Teflon tube is manufactured by technics of extruding method in the diameter from 0.5 to 250mm with PTFE granular resin. As PTFE has a very low co-efficient of friction, so the surface of extruded teflon PTFE tube has similar friction levels to ice. Extruded teflon PTFE tube can work at -180°C ~+260°C and is the best electrical insulator of all known plastics. Teflon Tube has the best electrical properties of all plastic.

Send Inquiry

PDF DownLoad

Product Description

Detailed Product Description
Apparent Density: 2.10 - 2.30 G/cm³ Applications: Wire
Color: Natural White|Red|Yellow|Black Diameters: 0.5mm-250mm
Product Name: PTFE Teflon Tube Temp: -180°C - 260°C


Extruded PTFE Teflon Tube / Teflon Tubing For Wire , 0.5mm - 250mm



Quick Detail:


1. Length :100mm--3000mm or as your requirements

2. Diameters : 0.5mm-250mm

3. High chemical resistance

4. High temperature resistance

5. Long durability

6. Self lubricating

7. Non-contaminating

8. With high quality and competitive price

9. Color:natural white,red,yellow,black and so on.

10. Surfact:smooth,no impurities,no black spot

11. Any sizes available



Description:


Extruded PTFE Teflon tube is manufactured by technics of extruding method in the diameter from 0.5 to

250mm with PTFE granular resin. As PTFE has a very low co-efficient of friction, so the surface of extruded

teflon PTFE tube has similar friction levels to ice. Extruded teflon PTFE tube can work at -180°C ~+260°C

and is the best electrical insulator of all known plastics. Teflon Tube has the best electrical properties of

all plastic.




Applications:


Extruded PTFE Teflon tube is used in fluid handling applications for high temperature acids and caustics

or where contamination is an issue, such as in wire braided hose. In applications where PTFE's excellent

insulating properties are needed heavy walled tube is the shape of choice, e.g. in spark plugs for

stationary generators, coaxial spacers, connectors,. Because drilling a precise hole in longer PTFE

lengths is impossible, extruded tube is the best way to insure uniform wall thickness throughout the length

of the tube. Various fillers are available to modify the properties of PTFE to meet application requirements




Specifications:


Property

Unit

Result

Apparent Density

g/cm3

2.10-2.30

Tensile Strength ≥

MPa

≥18

Crack Elongation ≥

%

≥230

Working Temperature

°C

-180°C ~ + 260°C

Out Diameter

0.5mm..3mm.....20mm.... 60mm,.....200mm,.....250mm

Length ( mm )

Unlimited

Diameter(mm)

Diameter(mm)

OD (mm)

ID(mm)

OD(mm)

ID(mm)

0.8

0.4

24

21

1

0.5

68

62

4

2

82

70

6

4

140

133

10

8

160

153

12

10

206

197

18

16

220

211




Remarks:


Extruded PTFE Teflon tube are available in other sizes and thickness according to customer's specific

requirements.




Competitive Advantage:


1. Excellent Chemical property
2. Virgin and recycled materials available
3. Any sizes available


4. Fast Usually
