Natural White PTFE Teflon Tube High Chemical Resistance Wire Use

Natural White PTFE Teflon Tube High Chemical Resistance Wire Use

Product number:kaxite-t016

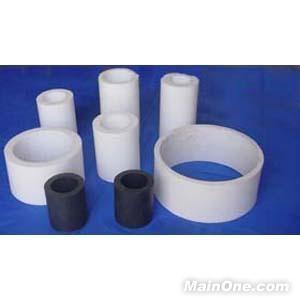

Quick Overview: PTFE tube is manufactured by technics of molding method in the diameter from 20 to 1800mm with PTFE granular resin. As PTFE has a very low co-efficient of friction, so the surface of molded teflon PTFE tube has similar friction levels to ice. PTFE tube can work at -180°C ~+260°C and is the best electrical insulator of all known plastics.

Send Inquiry

PDF DownLoad

Product Description

Detailed Product Description
Applications: Wire Color: Red, Black, Yellow
Diameters: 0.5mm-250mm



Natural White PTFE Teflon Tube High Chemical Resistance Wire Use





Quick Detail:



1. Length :100mm--3000mm or as your requirements

2. Diameters : 0.5mm-250mm

3. High chemical resistance

4. High temperature resistance

5. Long durability

6. Self lubricating

7. Non-contaminating

8. With high quality and competitive price

9. Color:natural white, red, yellow, black and so on.

10. Surfact:smooth, no impurities, no black spot

11. Any sizes available





Description:



PTFE tube is manufactured by technics of molding method in the diameter from 20 to

1800mm with PTFE granular resin. As PTFE has a very low co-efficient of friction, so the surface of

molded teflon PTFE tube has similar friction levels to ice. PTFE tube can work at

-180°C ~+260°C and is the best electrical insulator of all known plastics.





Applications:



PTFE tube is used in fluid handling applications for high temperature acids and caustics

or where contamination is an issue, such as in wire braided hose. In applications where PTFE' s excellent

insulating properties are needed heavy walled tube is the shape of choice, e.g. in spark plugs for

stationary generators, coaxial spacers, connectors,. Because drilling a precise hole in longer PTFE

lengths is impossible, extruded tube is the best way to insure uniform wall thickness throughout the

length of the tube. Various fillers are available to modify the properties of PTFE to meet application

requirements





Specifications:



Property

 Unit

Result

Apparent Density

g/cm3

2.10-2.30

Tensile Strength ≥

M Pa

≥18

Crack Elongation ≥

%

≥230

Working Temperature

°C

-180°C ~ + 260°C

Out Diameter

20mm..30mm..50mm...150mm.....200mm.....1000mm, 1800mm

Length ( mm )

200mm, 300mm





Diameter(mm)

Diameter(mm)

OD (mm)

ID(mm)

OD(mm)

ID(mm)

20

18

90

60

22

20

120

80

40

25

140

120

50

30

160

130

60

40

180

150

70

40

200

180

80

50

250

200







Remarks:



PTFE  tubes are available in other sizes and thickness according to customer's specific

requirements.







Competitive Advantage:



1. Excellent Chemical property
2. Virgin and recycled materials available
3. Any sizes available

4. Fast Usually
