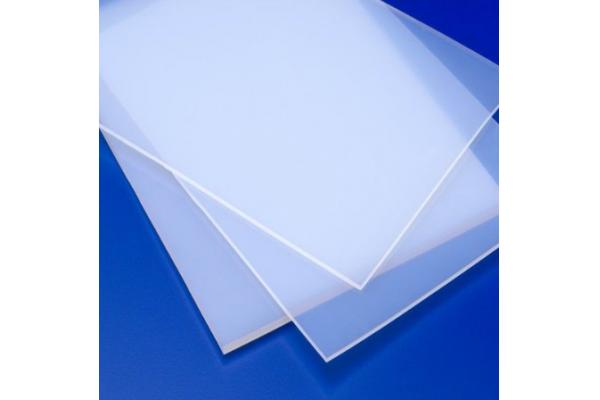

Non-Stick PFA Plastic Sheet Food Processing

Model:kaxite-s030

Quick Overview: PFA (also named fusible polytetrafluoroethylene) keeps PTFE excellent chemistry stability, low and high temperature resistance. PFA sheet is manufactured by molding and extruding method with PFA resin. is the most chemical resistance of all known plastics. It does not age. It has the lowest coefficient of friction of all known solid materials and a wide range of practicable temperature from -180%°C - +260°C.

Send Inquiry

Product Description

Detailed Product Description

Applications:	Food Processing	Density:	2.10 - 2.30g/cm³
Elongation:	150%	Feature:	Non-Stick
Product Name:	PFA Plastic Sheet	Tensile Strength:	15Mpa

Non-Stick PFA Plastic Sheet Food Processing , Teflon Pressing Sheet

Quick Detail:

1. Long Continuous lengths

2.Very high working temperatures

3. Non-stick characteristics

4.Low friction surface

5.Very high resistance to chemicals and solvents

6.Very high electrical resistance

7.Bio-compatibility

8.Welding and re-moulding potential

Description:

PFA (also named fusible polytetrafluoroethylene) keeps PTFE excellent chemistry stability, low and high

temperature resistance. PFA sheet is manufactured by molding and extruding method with PFA resin.

is the most chemical resistance of all known plastics. It does not age. It has the lowest coefficient of friction

of all known solid materials and a wide range of practicable temperature from -180%°C - +260°C.

Applications:

Heat exchangers

Laboratory applications

Semiconductor

Flow monitoring

Emissions monitoring

Double containment systems

Food processing

Electrical insulation

Automotive hose

Automotive paint spray

Specifications:

Property	Unit	Result
Appetent density	g/cm3	2.10—2.30
Tensile strength (min)	MPa	≥15.0
Ultimate elongation (min)	%	%150
Dialectic strength Dialectic strength	KV/mm	10

Length(mm)×Width(mm)	Thickness(mm)
Length(mm)×Width(mm)	Nominal	Tolerance
150×150	1.0-30	±0.30-±0.50
250×250	1.5-30	±0.30-±0.50
300×300	1.5-30	±0.30-±0.50
450×450	1.5-30	±0.30-±0.50
600×600	2-30	±0.30-±0.50
800×800	3-30	±0.30-±0.50
1000×1000	3-30	±0.30-±0.50
1200×1200	3-30	±0.30-±0.50
1000×2000	5-35	±0.30-±0.60
1500×1500	5-30	±0.30-±0.50
1800×1800	8-30	±0.30-±0.50
2000×2000	8-30	±0.30-±0.50

Remarks:

PFA sheet/PFA board are in available in other sizes and thickness according to customer's specific

requirements.

Competitive Advantage:

1.Excellent Chemical property
2.Virgin and recycled materials available
3.Any sizes available
4.Fast Usually
